Casting and Forging Processes in Brake Caliper Manufacturing

The manufacturing of brake calipers relies on two primary processes: casting and forging. These methods shape the raw materials into robust and precise components capable of withstanding the immense forces and high temperatures generated during braking. Each process offers distinct advantages, and the choice between casting and forging depends on the application, desired properties, and cost considerations. In this article, we’ll delve into the casting and forging processes used in brake caliper manufacturing, highlighting their benefits and applications.

Casting Process for Brake Calipers

Casting involves pouring molten metal into a mold to create the desired shape. Once cooled, the metal solidifies, and the caliper is removed for finishing and machining. This process is commonly used for materials like cast iron and aluminum alloys, particularly in mass production.

Steps in the Casting Process

1. Mold Preparation:
   • A mold is created, often using sand or metal, to define the caliper’s shape.
   • For precision applications, permanent molds are used to ensure consistent quality.
2. Melting the Metal:
   • The raw material, such as aluminum or cast iron, is melted in a furnace until it reaches the proper temperature.
3. Pouring the Molten Metal:
   • The molten metal is poured into the prepared mold, filling the cavities that will shape the caliper.
4. Cooling and Solidification:
   • The metal is allowed to cool and solidify, taking the form of the mold. Cooling rates are carefully controlled to prevent defects.

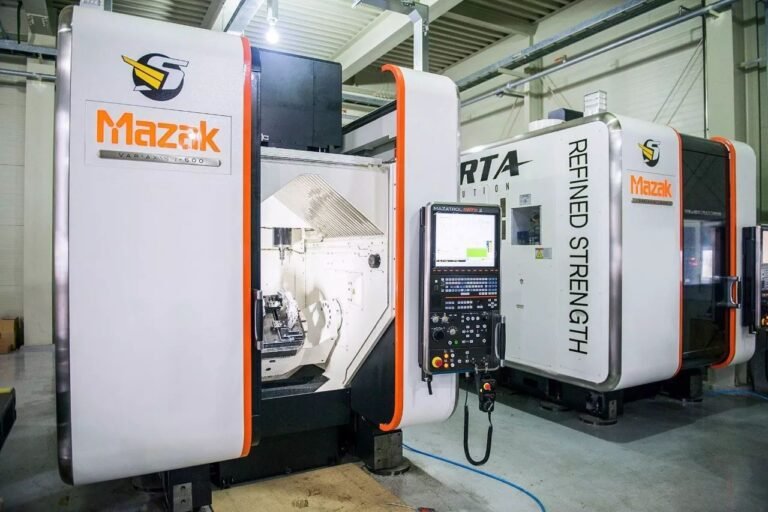

5. Finishing and Machining:
   • Once the caliper is removed from the mold, it undergoes cleaning, trimming, and precision machining to achieve the final dimensions and surface finish.

Advantages of Casting

• Complex Shapes: Casting allows for intricate designs and internal cavities, making it ideal for modern brake calipers with detailed geometries.
• Cost-Effective: The casting process is economical for large production volumes due to its high repeatability and low material waste.
• Material Versatility: Both aluminum and cast iron can be effectively cast, providing options for different vehicle applications.

Applications of Casting

• Standard Passenger Vehicles: Cast iron calipers are commonly used in everyday vehicles for their durability and cost efficiency.
• High-Performance Vehicles: Cast aluminum calipers are lighter and better suited for vehicles where weight savings and heat dissipation are crucial.

Challenges in Casting

• Porosity Issues: Casting can sometimes lead to small voids or air pockets within the material, which may affect strength and durability.
• Surface Finish: Cast components often require additional machining to achieve the smooth surfaces needed for brake calipers.

Forging Process for Brake Calipers

Forging is a manufacturing process where metal is shaped under high pressure using mechanical or hydraulic presses. The metal is typically heated to improve its malleability, allowing it to be compressed into the desired shape. Forged aluminum is the most common material for brake calipers made using this method, as it offers excellent strength and weight advantages.

Steps in the Forging Process

1. Billet Preparation:
   • Raw material (often aluminum or steel) is cut into billets or pre-formed blanks.
2. Heating:
   • The billets are heated to make them more malleable without melting, which improves their ability to fill the die under pressure.
3. Forging Press:
   • The heated billet is placed into a die, and a powerful press applies immense pressure, shaping the material into the desired form.
4. Cooling and Heat Treatment:
   • The forged caliper is cooled and undergoes heat treatment to enhance its mechanical properties, such as hardness and durability.
5. Finishing and Machining:
   • Precision machining ensures that the caliper meets dimensional tolerances and achieves a smooth finish for critical surfaces.

Advantages of Forging

• High Strength: Forging aligns the metal’s grain structure, enhancing the caliper’s strength and durability. This makes it ideal for high-stress applications.
• Consistency: Forged calipers have fewer internal defects compared to cast components, resulting in more reliable performance.
• Weight Efficiency: Forged aluminum calipers are lightweight while retaining exceptional strength, improving handling and fuel efficiency.

Applications of Forging

• High-Performance and Racing Vehicles: Forged calipers are commonly used in sports cars and racing vehicles where strength-to-weight ratio and reliability are critical.
• Luxury Vehicles: Lightweight and high-quality forged calipers contribute to the premium feel and performance expected in luxury cars.

Challenges in Forging

• Higher Costs: Forging requires more expensive equipment and has higher tooling costs compared to casting, making it less cost-effective for mass production.
• Limited Design Complexity: Forging is less suitable for intricate designs and internal cavities due to the limitations of die shaping.

Comparison of Casting and Forging for Brake Calipers

Feature	Casting	Forging
Strength	Moderate	High
Weight	Heavier (cast iron); moderate (aluminum)	Lightweight (forged aluminum)
Design Complexity	High (allows intricate shapes)	Moderate (limited to simpler designs)
Production Volume	Ideal for large volumes	Best for lower volumes or premium applications
Cost	Lower (economical for mass production)	Higher (due to tooling and equipment)
Applications	Standard vehicles, heavy-duty vehicles	High-performance and luxury vehicles

Future Trends in Brake Caliper Manufacturing

1. Hybrid Processes:
   • Combining casting and forging techniques may enable manufacturers to leverage the strengths of both processes. For example, forging can be used for high-stress areas, while casting is used for complex shapes.
2. Advanced Materials:
   • New materials, such as titanium alloys and carbon composites, are being explored for lightweight, high-performance applications. These materials may require specialized casting or forging techniques.
3. 3D Printing:
   • Additive manufacturing offers the potential for creating complex caliper designs without the limitations of traditional casting or forging. While still in its infancy for brake calipers, 3D printing could revolutionize customization and prototyping.
4. Sustainability:
   • Efforts to reduce material waste and energy consumption are driving innovation in both casting and forging processes. Recycling scrap aluminum and improving energy efficiency in furnaces and presses are common goals.

Conclusion

Casting and forging are two foundational processes in brake caliper manufacturing, each with its strengths and challenges. Casting is ideal for complex shapes and cost-efficient production, while forging delivers superior strength and reliability for high-performance applications. As technology advances, these processes will continue to evolve, offering even greater precision, efficiency, and material options to meet the demands of modern vehicles.

Whether through casting or forging, the ultimate goal remains the same: producing brake calipers that deliver safety, performance, and durability under the harshest conditions.
